HYPER™ 5kWpower system

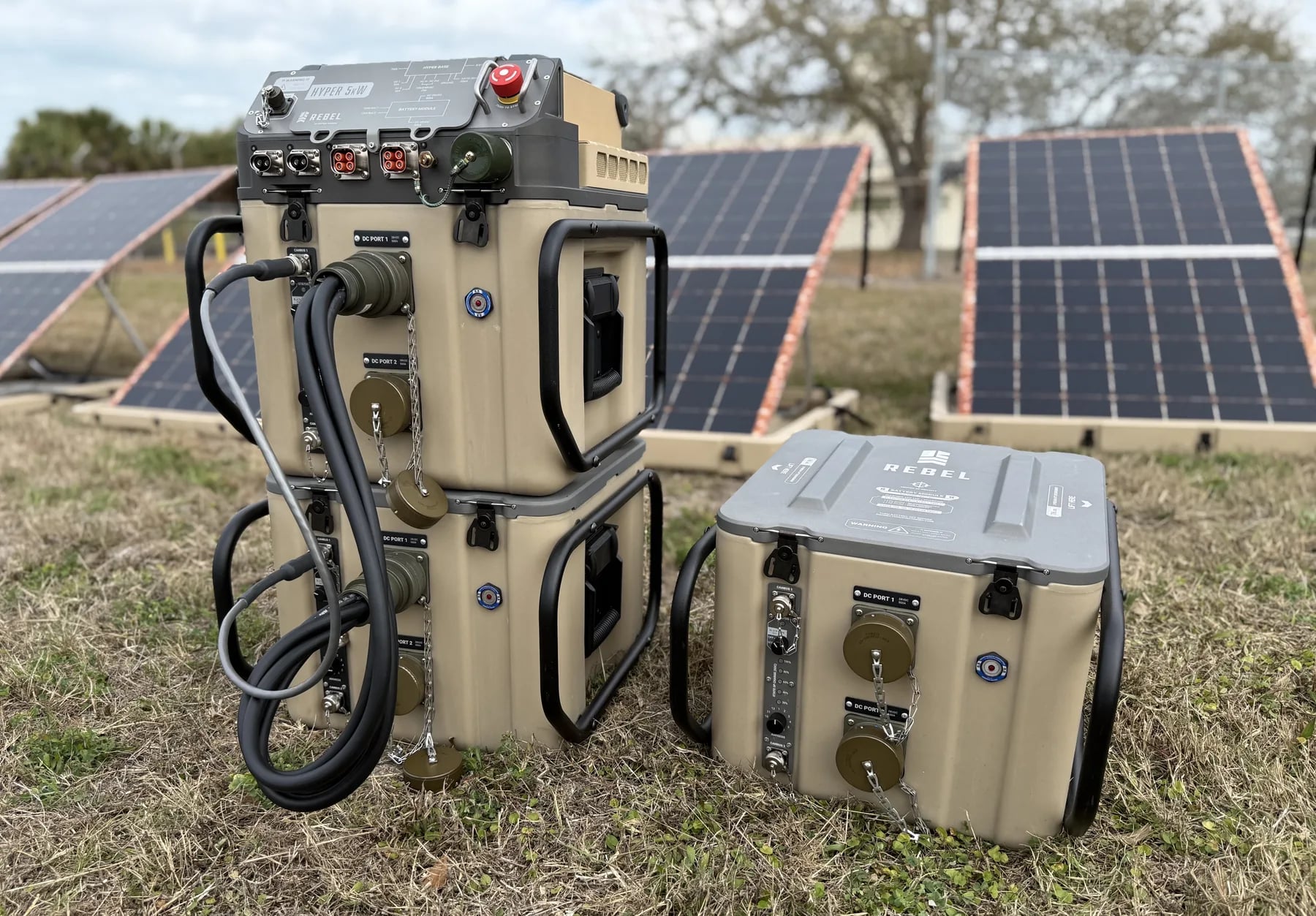

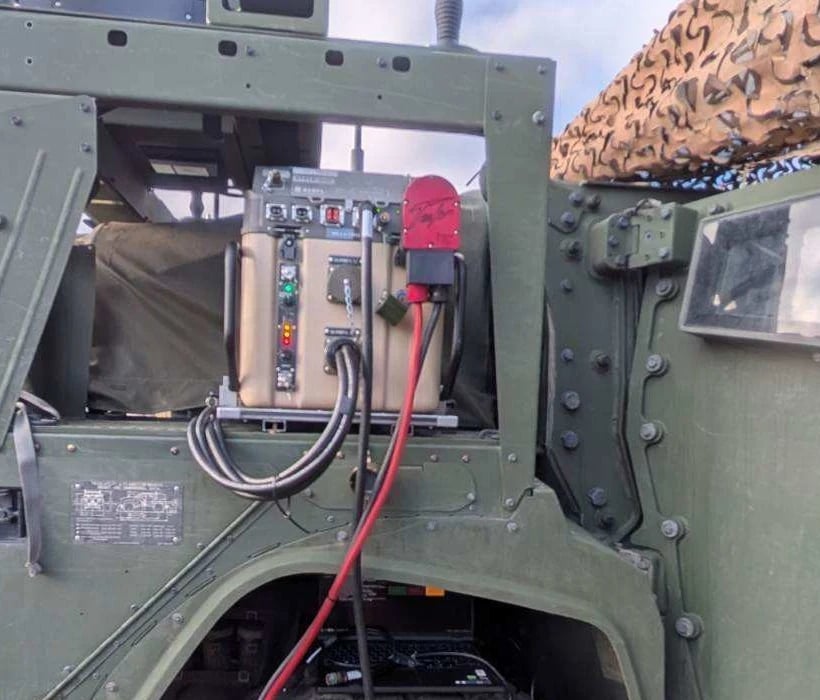

A battlefield-ready hybrid power system built to handle the demands of modern military deployments. Rugged, compact, and intelligently designed, it integrates generators, energy storage, and vehicles on the move into one adaptable unit. Whether you’re running silent watch, setting up a forward operating base, or managing a critical comms hub, it delivers uninterrupted, mission-critical power with precision and control. Capable of both AC and DC routing, with selectable modes and intuitive onboard controls, it’s as smart as it is strong.
FEATURES:
AC Voltage
120 VAC 1PH 2-wire
120/240 VAC 2PH 3-Wire
50/60 Hz
AC Max Current
28 A-rms
Output Power
5 kW
Battery DC
20–32 VDC
500 A max
Battery type and quantity dependent
Regulated DC
12–60 VDC
50 A max
Size
18" H × 17" W × 19" D
Operating Temperature
–25°F to +120°F
(–32°C to +49°C)

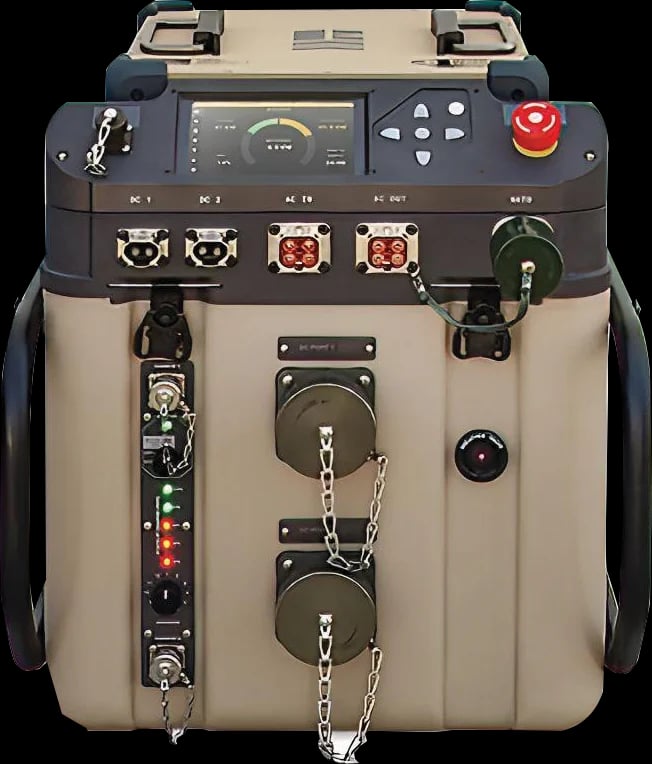

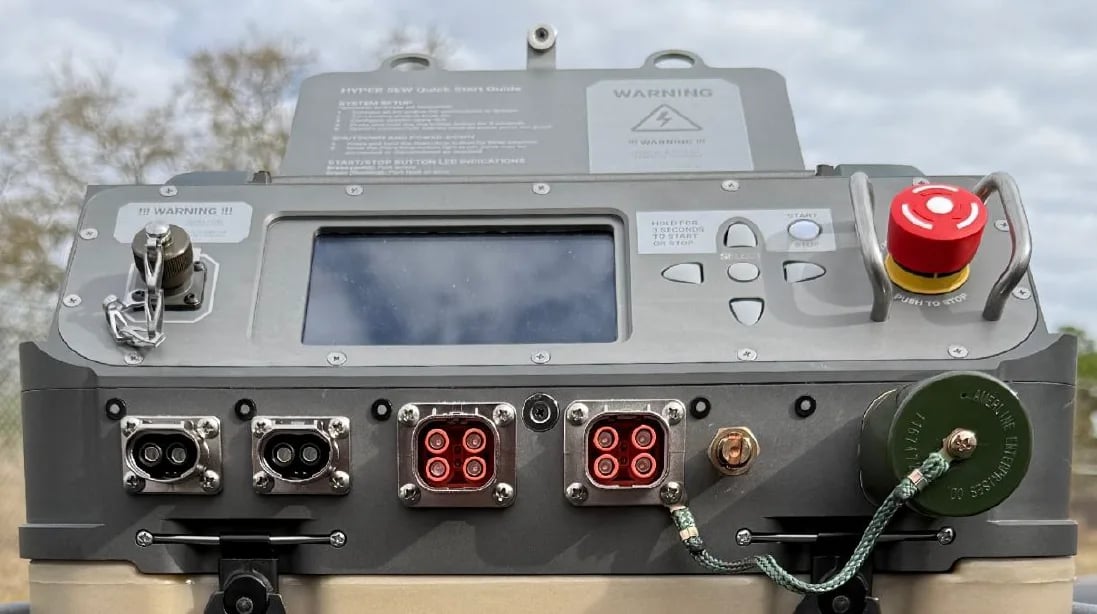

Base Overview

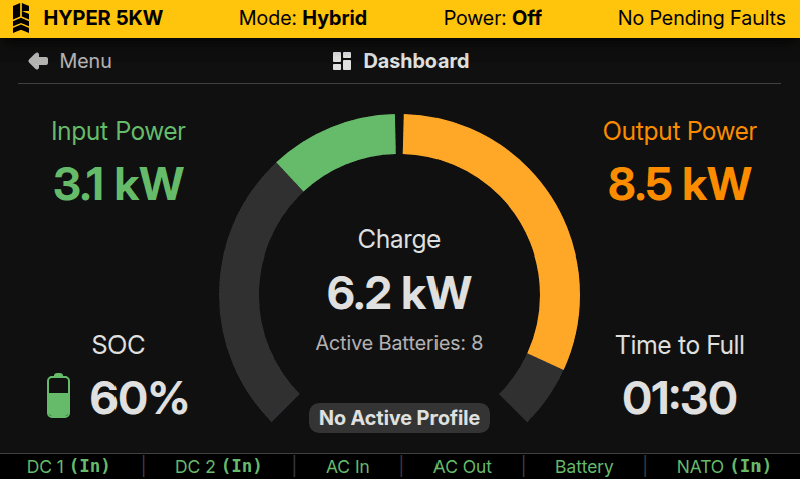

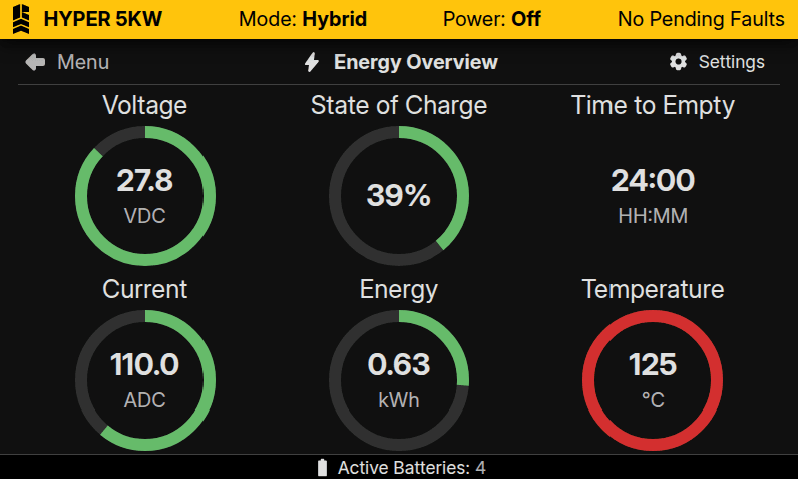

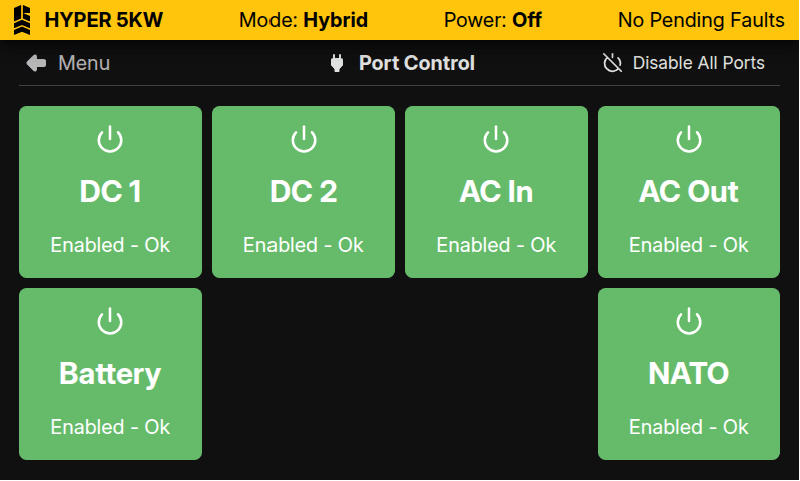

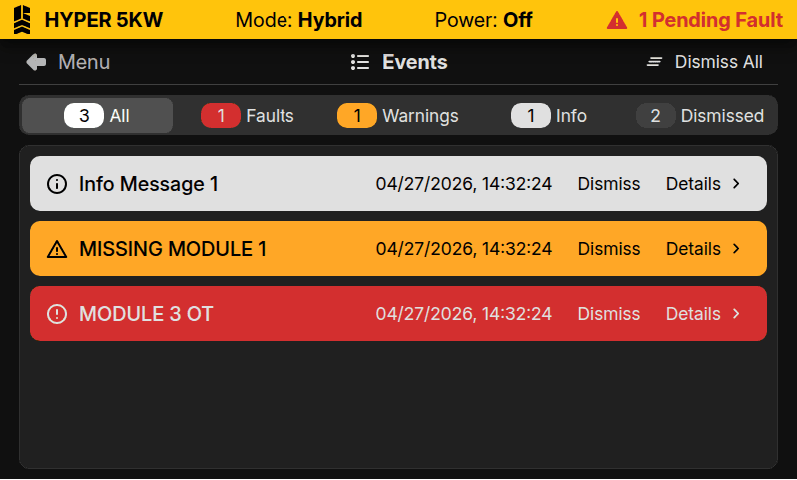

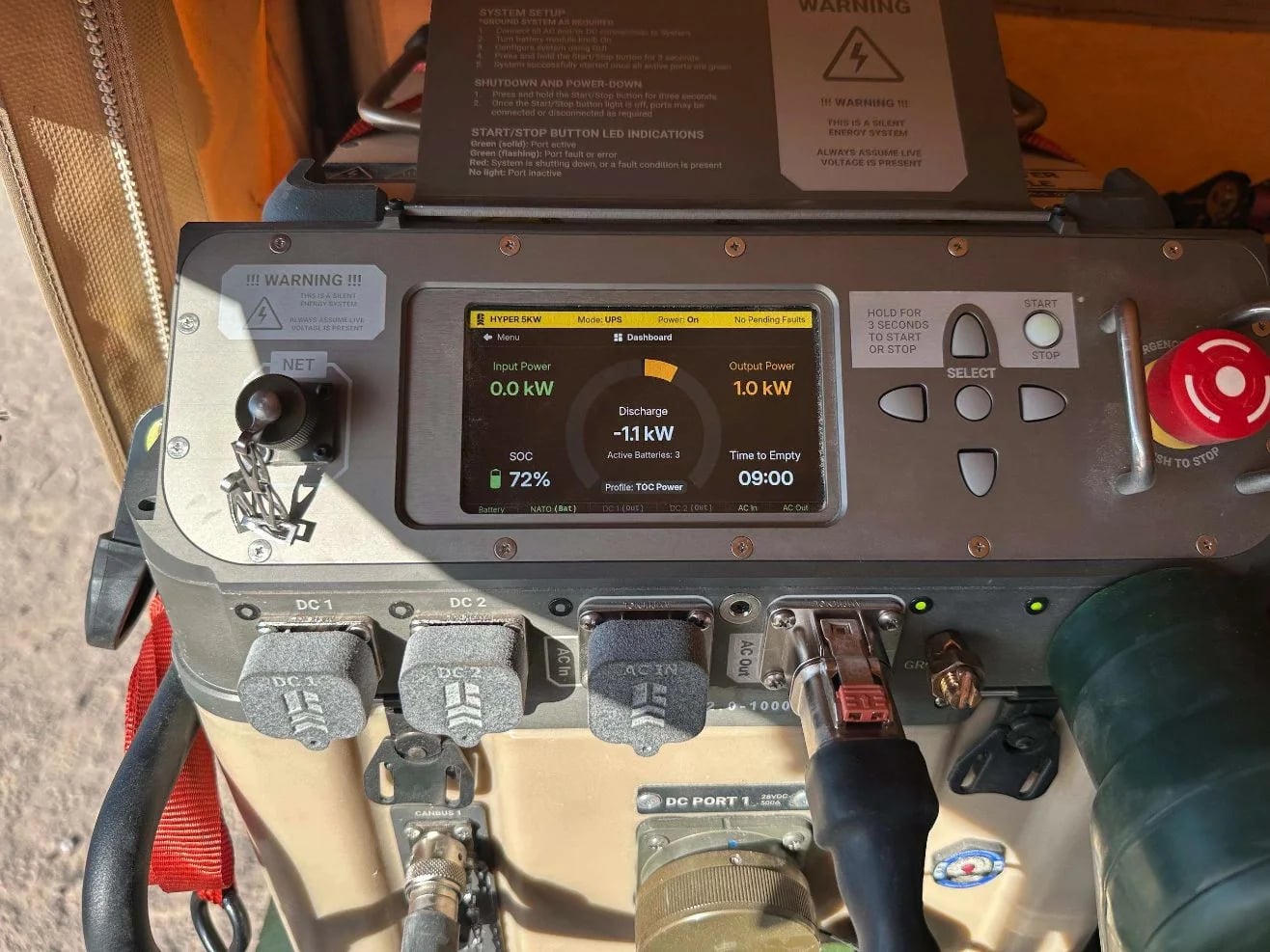

The system base provides the primary user interface and control point for the HYPER™ 5kW power system. The base contains the embedded display that presents the graphical user interface (GUI), along with user accessible controls and connection points required for system operation and integration.
- User Interface Display Cover
- TMS / Gen CANBus Connector
- Regulated DC 1 & 2 Connectors
- AC In & Out Connectors
- Ground Lug Connection
- NATO Connector
- E-Stop Button
- User Interface Control Pad
- User Interface Display
